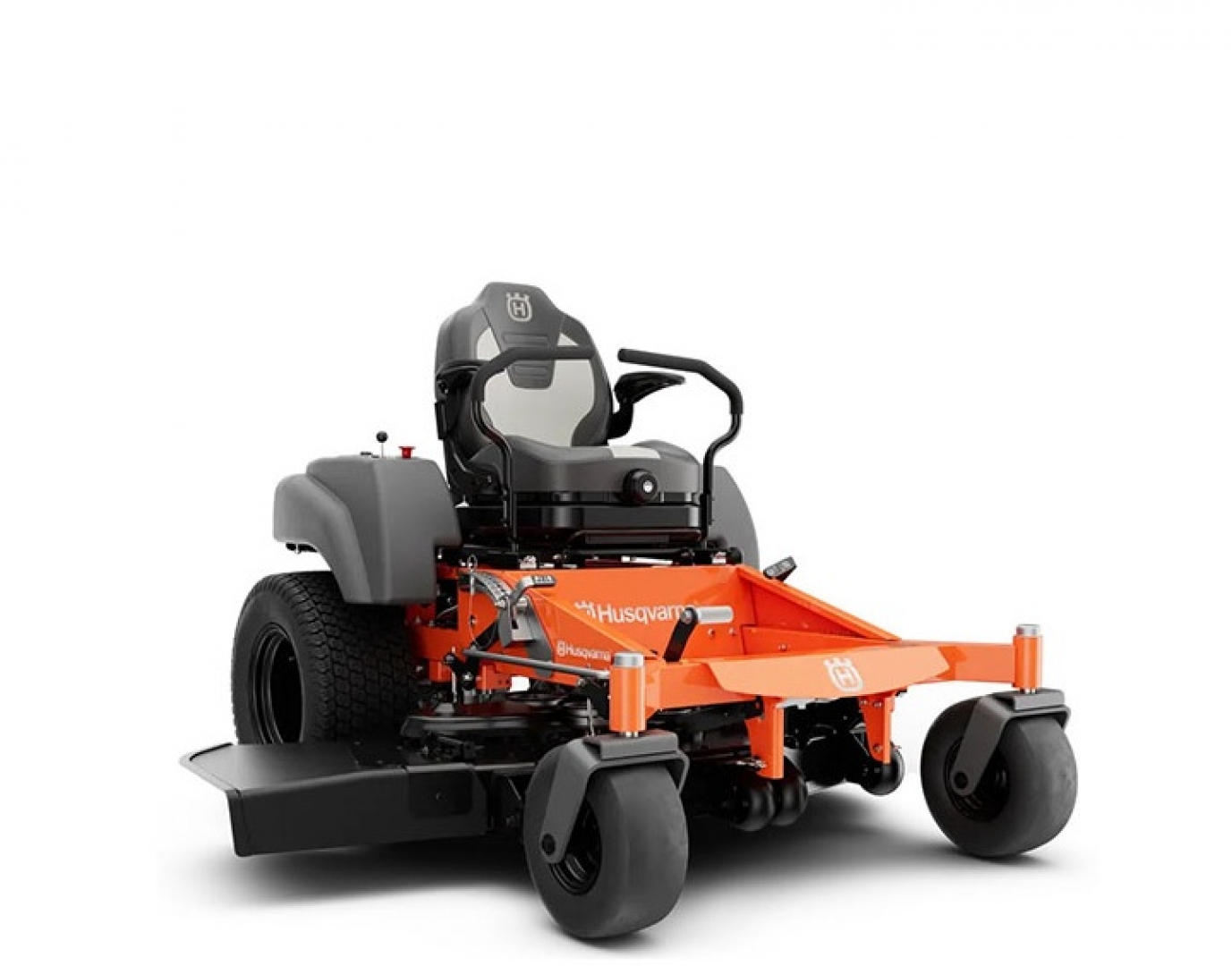

Husqvarna MZ48 SE Special Edition

Features

HEAVY-DUTY KAWASAKI ENGINE: Smooth, quiet and reliable power with heavy-duty components for a long life
DIAL ADJUSTED SEAT SUSPENSION: Dial adjusted seat suspension gives the user the option to choose their perfect ride with the turn of a dial
DURABLE, PREMIUM TIRES: Designed for a long lifespan while staying gentle on your grass
CLEARCUT™ FABRICATED DECK: Specially-designed deck built for superior cutting performance whether discharging, bagging or mulching
EASILY ADJUSTABLE CUTTING HEIGHT: Quickly adjust the cutting height with the ergonomic, pedal-assisted cutting deck lift system
COMFORTABLE, SUPPORTIVE 18" SEAT: Deep cushions and generous bolsters offer superior comfort and reduced vibrations
ULTRA-DURABLE FRAME: Rugged frame and wheels ensure durability and long-lasting performance
EASY-ACCESS SERVICE POINTS: Easily access the oil and filter, hydraulic drive system, electrical system and battery
COMMERCIAL-GRADE TRANSMISSION: HydroGear ZT3100 transmission delivers increased speed and improved durability
REMOVABLE FOOT PAN: Easy access to deck belt pulleys and spindles for quick clean-up

General Information

Manufacturer

Husqvarna Power Equipment

Model Year

2026

Model

MZ48 Special Edition 48 in. Kawasaki FR Series 20.5 hp

Model Code

9708479-01

Color

Orange

Body

Seat

Material - Vinyl

Back height - High

Type - 18 in. high back

Hinged armrests - Standard

Drivetrain

Transmission Make

Hydro-Gear

Transmission Type

Hydrostatic

Travel Speed Forward

Min - 0 mph

Max - 8.5 mph

Wheels/Tires

Anti-scalp wheels - 4

Tire Size

Front width - 6 in.

Front diameter - 6.5 in.

Front diameter wheel - 13 in.

Electrical

Instrumentation

Hour meter type - Digital with pre-programmed service intervals

Hour Meter

Digital with pre-programmed service intervals

Engine

Engine Make

Kawasaki

Engine Model

FR Series

Cooling

Air

Cylinders

Horsepower

Engine power (As rated by the engine manufacturer)¹ - 20.5 hp

¹Engine power (As rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM

Displacement

Cylinder - 44.2 ci

Air Cleaner

Air filter type - Auto-type paper

Emissions

Exhaust emissions (CO? EU V)² - 792 g/kWh

²Exhaust emissions (CO? EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.

Lubrication

Full pressure

Fuel Type

Gasoline

Fuel Capacity

Fuel tank volume (with reserve) - 5 gal.

Fuel tank location - Side (Single)

Hydraulics

Pump Type

Fan-cooled

Measurements

Length

Base machine - 75.5 in.

Width

Base machine (chute down) - 61 in.

Base machine (chute up) - 56 in.

Height

Base machine - 42 in.

Weight

740 lb.

Cutting Width

48 in.

Cutting Height

Approximate - 1.5 - 4.5 in.

Steps - 13 steps

Operational

Deck Type

10 ga. fabricated

Deck Material

Steel

Deck Thickness

10 ga.

Deck Lift

Manual, foot assisted

Discharge

Side

Spindles

Cast aluminum

Blades

3 pcs

Blade Brake Clutch

Blade engagement - Electric clutch

Blade Tip Speed

18,500 fpm

Mulching

Yes

Other

Includes

Cutting methods - Collect / Mulch / Side discharge

Deck wash port

Greasable mandrels

Nose roller

Cutting deck surface treatment - Powder coated

Oil filter

Cup holder
