Price: $2,399.00
Product Information

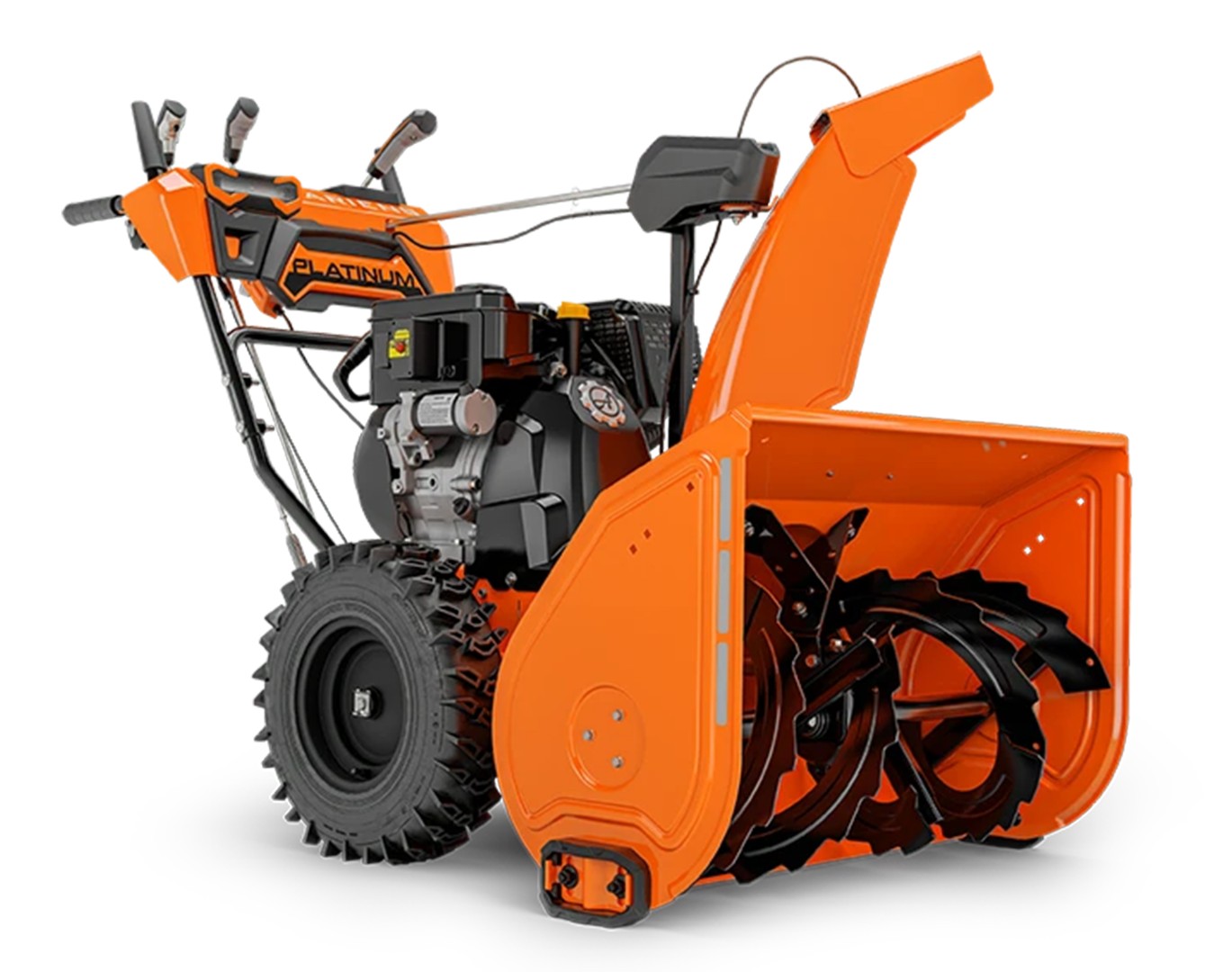

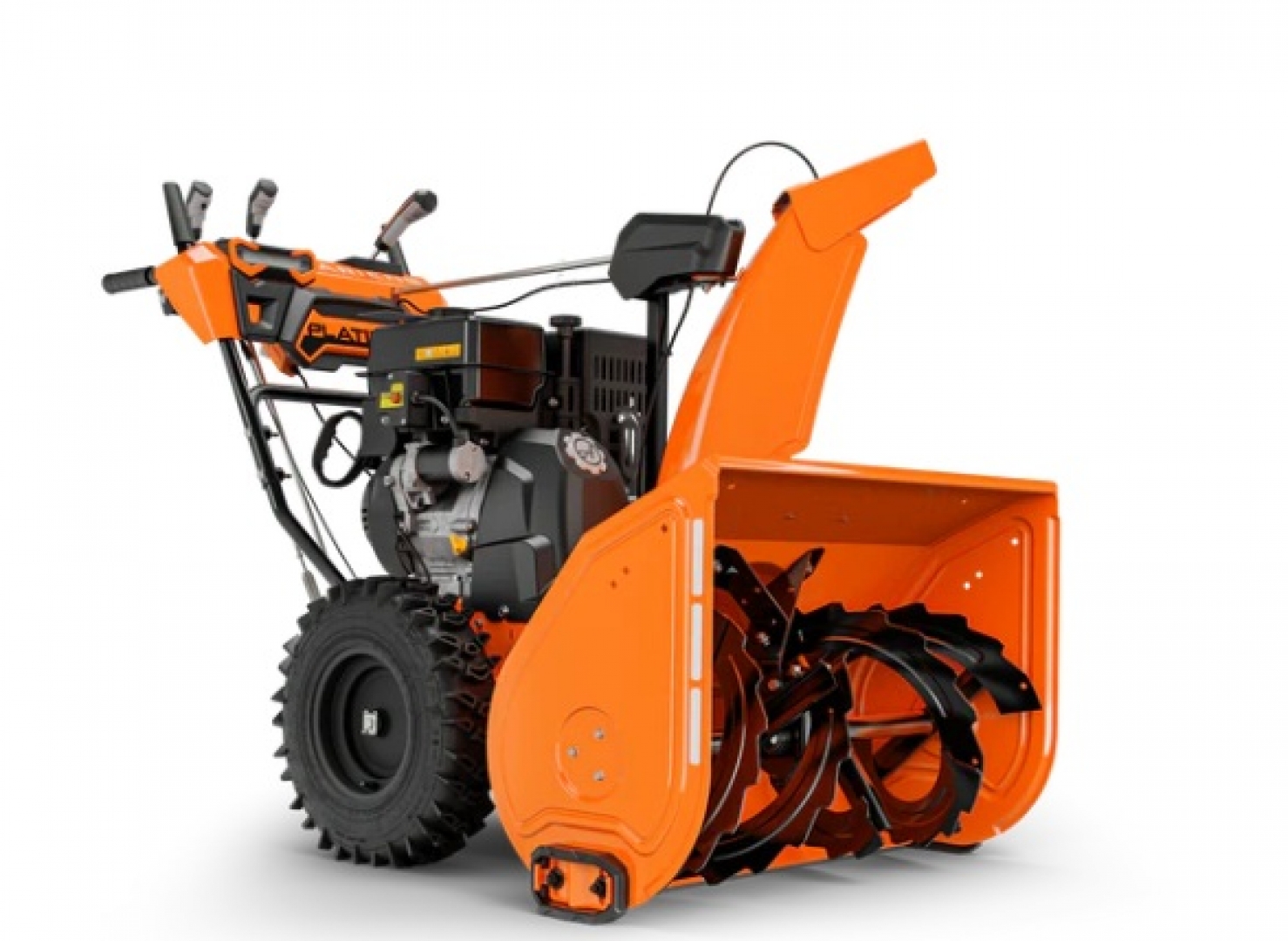

Ariens Platinum 30 SHO



Elevate to Platinum status! The Ariens Platinum SHO models combine more power with enhanced operating features — A larger 414cc engine, Super High Output (SHO) impeller, Quick-Turn chute, and handwarmers come standard. These models are ideal for clearing up to 16 inches of snowfall.

  • Ariens AX414cc Engine: More power than Deluxe models, plus equipped with a 120V electric start with recoil backup starting system.
  • Super High-Output Impeller (SHO): A faster spinning impeller as a result of modified belts and pulleys allows you to clear snow faster and throw snow farther.
  • Auto-Turn Steering: Automatically senses change in in direction as you turn. Power is then adjusted to the inside wheel, making turning much easier.
  • Molded Friction Disk: Fewer overall parts, easier to service, and more robust shifting.
  • Re-balanced Machine: The axle has been relocated on the frame to improve balance and performance of the Auto-Turn steering feature.
  • Disc-O-Matic Drive System: Smoothly shifts into 6 forward speeds or two reverse speeds.
  • Cast Iron Gear Case: Durable in extreme conditions, delivering ideal power to the auger system to churn and throw snow.
  • Quick Turn Chute Control: Rotate the chute 200 degrees and adjust the discharge angle, both from a convenient location on the dashboard.
  • Heated Handwarmers: Handwarmers are installed on the handles to keep your hands nice and toasty while you operate.
  • Interlocking Controls: Allows the ability to lock both handles, so one hand can be free to adjust chute rotation as you move.
  • 16" Snow Tread Tires: 16" x 4.8" directional snow tread tires provide necessary grip on hard packed snow.
  • Warranty: 3 year residential warranty, 90 day commercial warranty.



Engine
Engine Brand Ariens AX414
Displacement(cc) 414cc
Starting System 120V Electric Start w/ recoil backup
Engine 4-cycle
Fuel Capacity 3.2 quarts
Gross Torque 20 ft. lbs.

Auger System
Gear Case Cast Iron
Impeller 14 inch diameter, Steel 3-blade
Auger Type Serrated Steel
Auger Diameter (in.) 14 inches
Max Throwing Distance (ft) 55 ft.

Chute System
Deflector Control In-dash lever
Chute Turning Radius (degrees) 200 degrees
Chute Rotation Quick Turn

Drive System
Drive Type Disc-O-Matic
Speed 6 forward speeds, 2 reverse speeds
Tire Size 16" x 4.8" directional snow tread
Axle System Auto-Turn

Dimensions
Length (in.) 58.3 inches
Height (in.) 45.9 inches
Width (in.) 32.4 inches
Weight (lbs.) 293.8 lbs.

Warranty
Residential Warranty 3 years
Commercial Warranty 90 days

Housing
Clearing Width (in.) 30 inches
Clearing Height (in.) 21 inches

Features
Slide Shoes Included, reversible
Lights Halogen
Drift Cutter Sold Separately
Hand Warmers Included
Electric Start 120V
Remote Chute Rotation Yes
